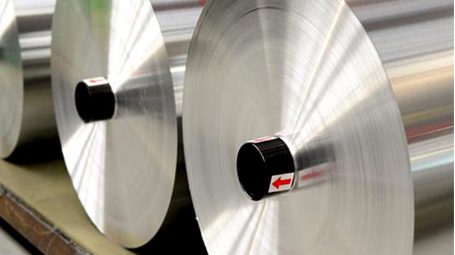

3003 aluminum coil vs 3004 aluminum coil – Which is Better to Choose?

3003 and 3004 aluminum coils are mostly used in construction. High-magnesium, aluminum alloy plates, thin plates, aluminum alloy pre-stretched aluminum alloy plates series products are widely used in aerospace, military, electric locomotives, special vehicles, shipbuilding, mechanical processing, and chemicals, Power, transportation, construction, decoration and other industries. With its corporate capital strength, strong production and research and development capabilities. Although it’s similar in outside and contents, while there are some slight differences between them, which made them different in some applications. This article will guide you to know 3003 and 3004 aluminium coils deeply.

Why is 3003 being Widely used?

3003 aluminum coil is the most widely used aluminum alloy because 3003 aluminum coil price is reasonable for most industries. It is composed of aluminum, copper, iron, manganese, silicon and zinc. It is widely used because of its strong corrosion resistance and medium strength. 3003 aluminum coil is 20% stronger than 1100 grade alloy because it fuses with manganese. The strength of this alloy can be increased by cold working.

Advantages of The The 3003 Aluminum Coil

The workability of 3003 aluminum is considered to be a good aluminum alloy. It is easy to process for different applications. And it can be formed using traditional either hot working or cold working. You can also use traditional welding methods to shape 3003 aluminum. It is sometimes welded to other aluminum alloys, such as 6061, 5052 and 6062, and they should have an AL 4043 filler rod.

Aluminum 3003 is not heat-treatable but can be forged between 500 and 950 degrees Fahrenheit. When heat is used in this range, aluminum can be easily thermally processed. However, it is easy to cold work, which can be done using conventional methods. When annealing the alloy during or after using cold working techniques, it should be done at 775 degrees Fahrenheit. This will give it enough time to heat up thoroughly before air cooling. The only way to harden this alloy is to use cold working. It can also be deep drawn, spinning or brazing.

Why is 3004 Aluminum Coil so Popular?

3004 aluminum coil is an alloy in the forged aluminum-manganese series (3000 or 3xxx series). It is similar to 3003 alloys, except that about 1% of magnesium is added. It can be cold worked (but unlike some other types of aluminum alloys, it cannot be heat treated) to produce a temper with a higher strength but lower ductility. Like most other aluminum-manganese alloys, 3004 is a general-purpose alloy with medium strength, good workability and good corrosion resistance, always be made into the painted aluminum coil. It is usually rolled and extruded (used to make beverage cans), but it is usually not forged. As a forging alloy, it is not used for casting.

Advantages of the 3004 Aluminum Coil

Excellent punch-ability and good oxidation, its surface can be anodized to improve the hardness and wear resistance, while it also gives a bright and colorful surface. And got improvement based on 3003 aluminum. It’s harder than 3003.
